Technical & CAD Drawings

Easily find drawings for each of our individual architectural metal components. Scroll through the different product types or use the links below to jump to a specific section.

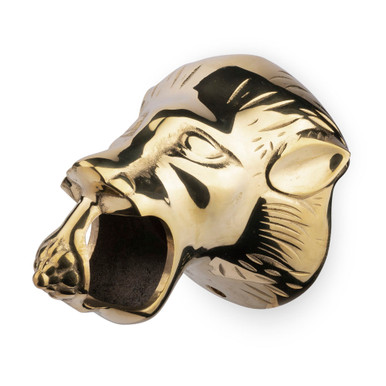

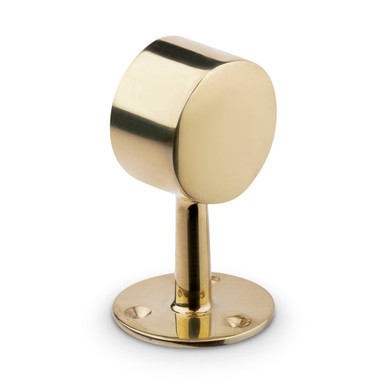

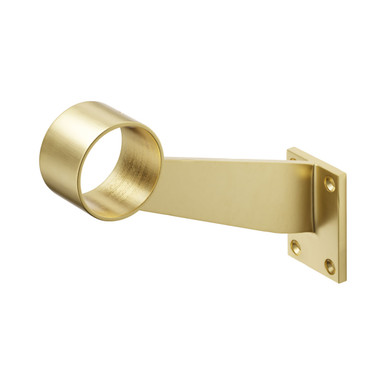

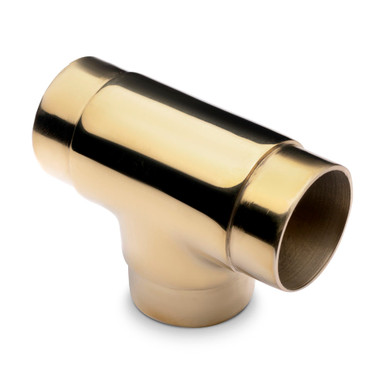

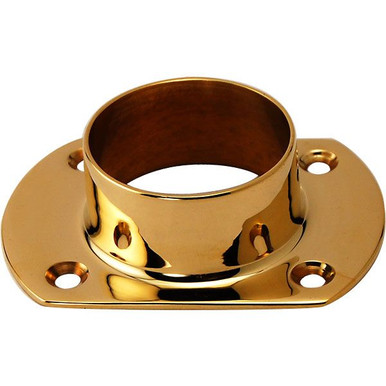

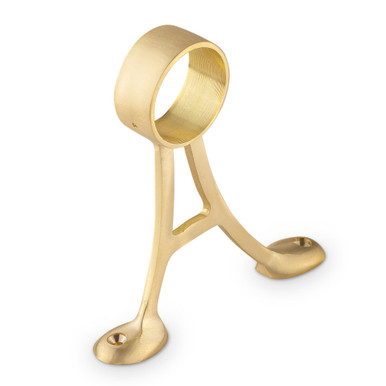

The industry standard for commercial bar foot rail installations. Our 2” OD tubing and components can also be used to create custom shelving systems.

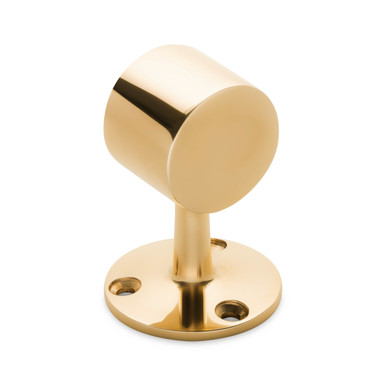

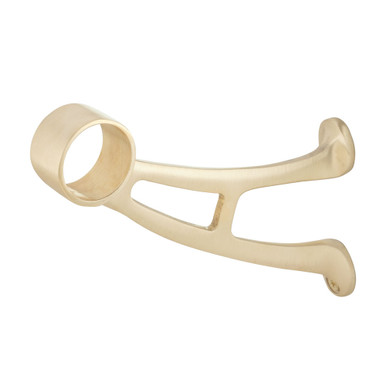

Versatile 1.5” OD tubing and components are ideal for residential foot rail systems, decorative top rail applications, and shelving layouts.

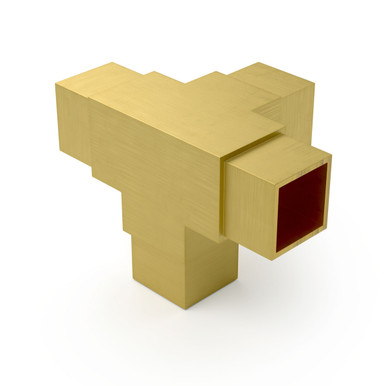

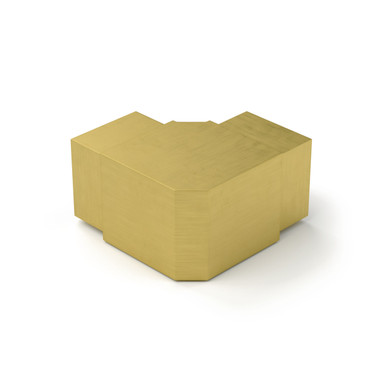

Create eye-catching bar foot rail and shelving systems with our 1.5” OD square tubing and components.

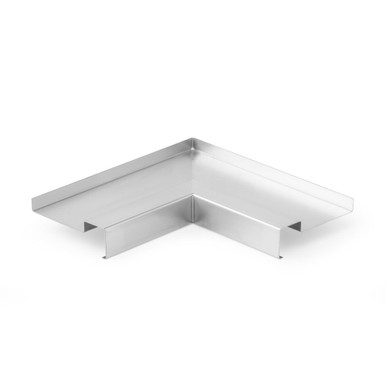

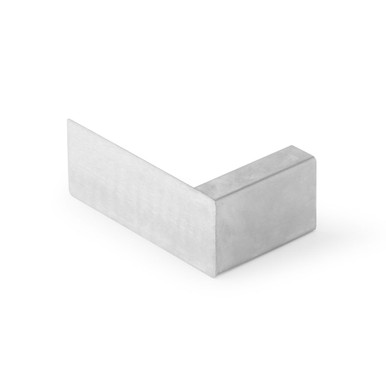

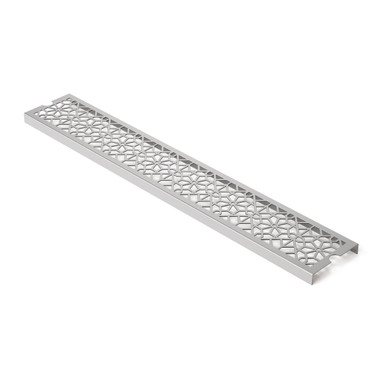

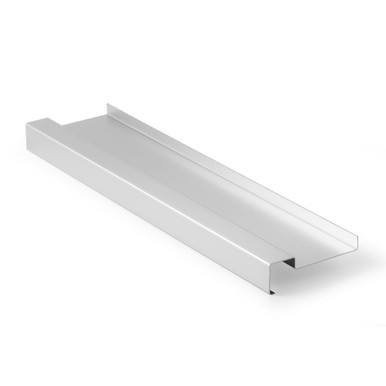

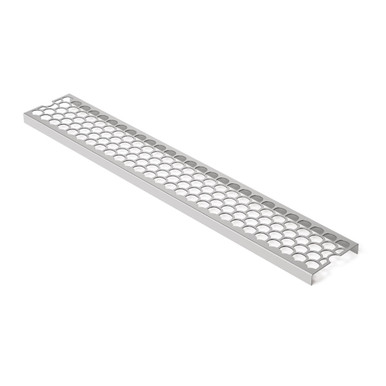

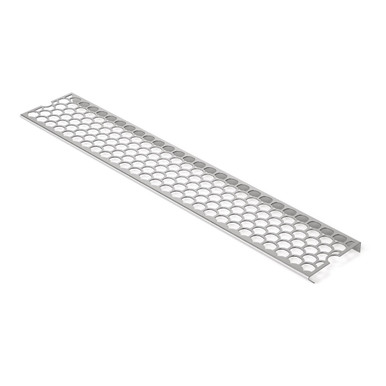

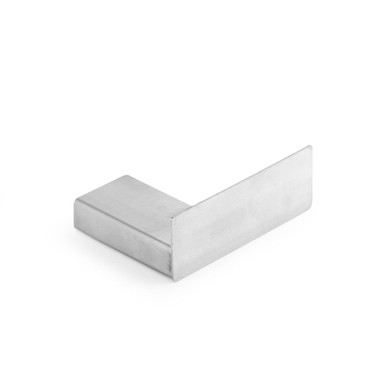

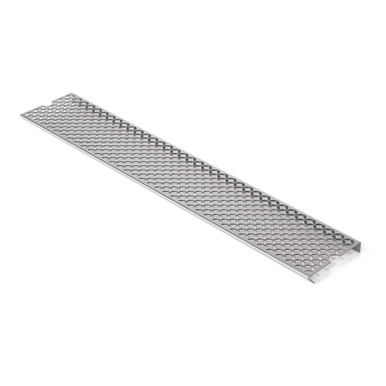

Our Drink Rail Systems create an easy-to-clean space for pouring and mixing drinks that enhances the overall look of any bar area.

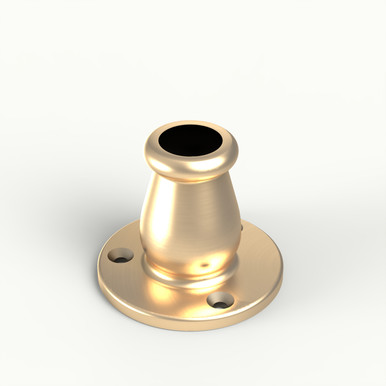

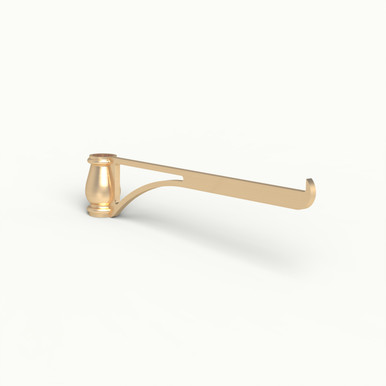

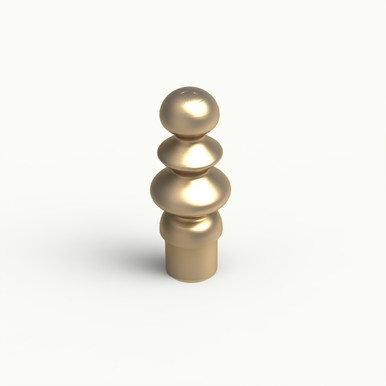

Cantilever is an adjustable, easy-to-install shelving system that pairs vertical brass posts with structural brackets for a clean, architectural appearance.

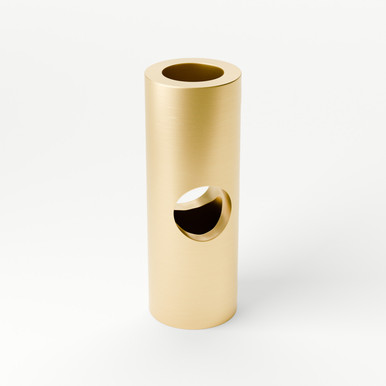

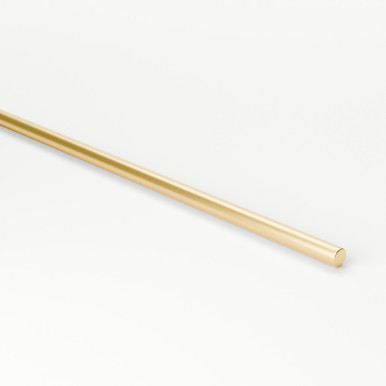

Constructed from 5/8” solid brass rods and precision knuckle joint fittings, our rod and joint shelving system allows shelves to be repositioned easily for flexible layouts.

Tipping rail, also known as gallery rail, adds an intentional finishing detail to bar tops and shelving while helping to secure glassware and other objects.

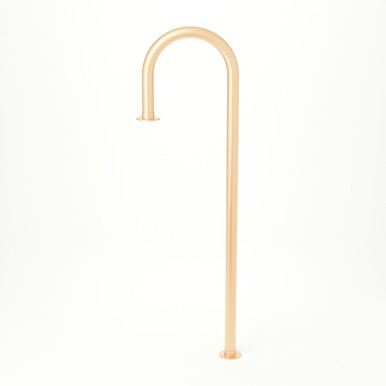

Service rail supports efficient service by creating designated space for staff to retrieve and deliver drink orders with ease.

Glass racks can be mounted under counters or cabinets to help you store wine glasses and other stemmed glassware.

These coat hooks attach easily to the bar face with the included mounting screws, and they are available in all the same finishes as our bar foot rail and architectural metal products to ensure that all the metal around the bar matches perfectly.

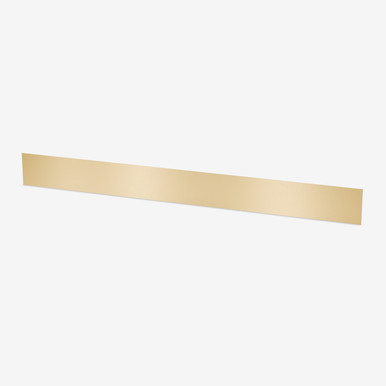

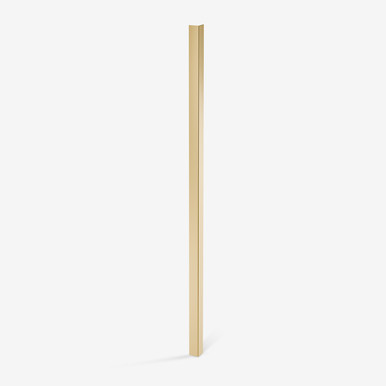

Toe kicks and corner guards help protect millwork and other surfaces from the everyday wear of busy hospitality environments. But functional doesn’t have to mean visually disconnected.
