Combination brackets are our most popular style of bar rail bracket because of their classic look and ease of installation. The weight on the bracket is distributed between the bar-mounted and floor supports to fully support your bar rail.
This sunset copper combination bracket is made from stainless steel with a powder coated finish, and will precisely match your Sunset Copper two-inch outside diameter bar rail tubing.
This bracket sits approximately 6" off the floor (measured from the floor to the center of the area for the tubing) and 6"-7" away from the facing of the bar. With two contact points, this double-footed bar rail bracket combines a sturdy build and a classy design. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.
Combination brackets are installed by mounting them to the facing of a bar while the foot of the bracket rests on the floor. They are a perfect solution for anyone that wants a bracket to rest on the floor without having to drill into the surface.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Installation instructions:
- Measure & mark holes for mounting screws.
- Attach brackets to the face of the bar with mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of the bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of stainless steel with sunset copper finish
- For use with 2" Outside Diameter bar rail tubing
- Bracket arm mounts to the face of bar while foot rests on the floor
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting & self-drilling screws included
- Suitable for indoor or outdoor installation
-
- Bracket Width: 7.25”
- Bracket Height: 7.10”
- Opening Diameter: 2.01” (for 2” OD tubing)
- Wall to Center of Tubing (Horizontal Center Point): 6.13”
- Floor to Center of Tubing (Vertical Center Point): 5.99”
-
- (2) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- Download Spec Sheet
-
Attention CA Residents:
Prop 65 Warning >
The KegWorks Difference We're Your Favorite Drinking Buddy
Entertain & Inspire
We believe in creating and sharing good beverages. And having a damn good time doing it.
Educate & Inform
From troublshooting draft systems to crafting the perfect cocktail. We've got you covered.
Unique Product Selection
Your one-stop shop for the unique bar products you just have to have.
Exceed Expectations
Here to help. We aim to be the go-to source for all drink enthusiasts.
Customer Reviews
- Reviews
- Questions
Heavy duty and looks good!

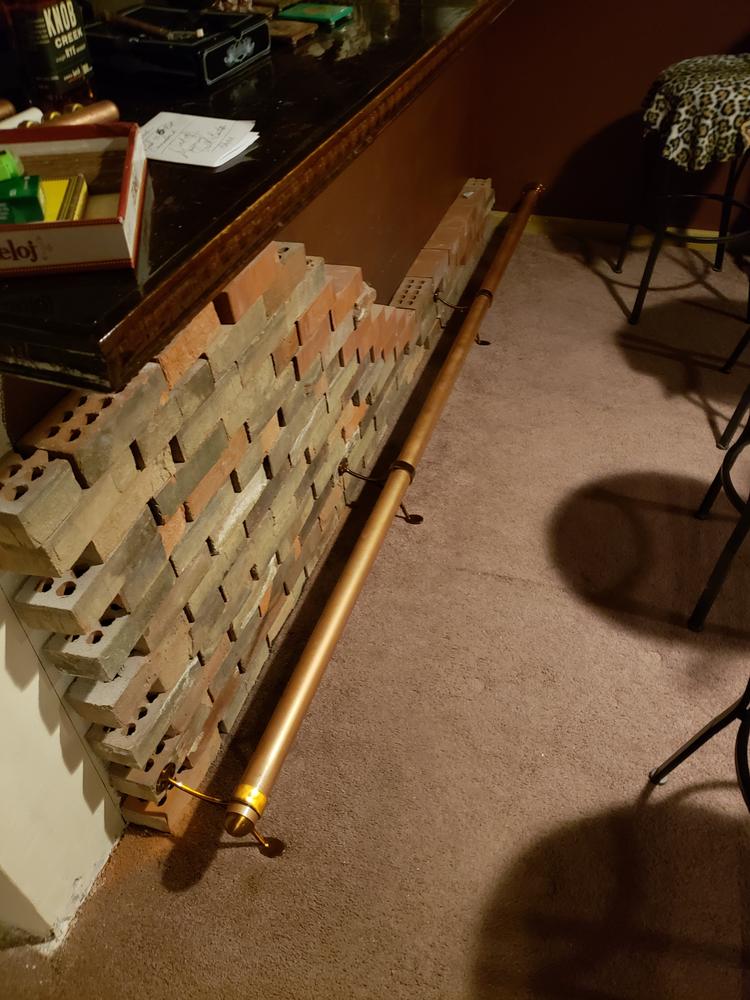

Went for a Steampunk look with a stainless foot rail and copper supports. Looks good!
Amazing quality! So excited to install on our new bar!
Beautiful
Looks great! Installation went just according to plan. Couldn’t be happier with this!
I am so disappointed that the 2" tube scratched so easily when we slid it into the tube holder. now it looks terrible.
Combination bar foot rail brackets
A beautiful finish as well as extremely sturdy !
beautiful copper color for footrail
I was looking for something to complement my bar design and am tired of satin nickel and brass. This gorgeous copper color steals the show! I've had great success with Kegworks and use their products for all my bar designs; the quality is good and the shipping is quick.
We loved these glasses at our hotel in Mykonos and ordered them for our beach house. The glasses arrived before we got home. Great quality and beautiful too.
All the products were very good. Only thing that was not so good was the screws that were supplied. Other than that Very Happy!!
Love it !
Bought for my husbands bar in the basement. We love it. I gave it 4/5 because I wish it was made of a thicker more sturdy material but you can't really tell and it looks really good!
Very nice but
Very attractive and well built product . However the screws are very soft and heads strip extremely easy . Tough to get sa screwdriver on them straight with foot rail pipe in the bracket . I drilled large pilot holes in my bar kick plate and had a hard time even using wax to get the screws in .
