For those that have access to the back of their bar face, bar mount brackets are a great option for both a classy look and an added level of convenience.
Bar mount brackets are a great option for those that can’t (or don’t want) to drill holes into their floors, and keep it clear of mounts that can stub toes. They also make cleaning your floor easier because you can sweep or mop under your foot rail without impediments.
This gunmetal grey bar mount bracket is made from stainless steel with a powdercoated finish, and will precisely match your Gunmetal Grey two-inch outside diameter bar rail tubing.
You can create a custom look with bar mounted brackets because they allow you to choose the height of your bar rail. This is the perfect solution for those wanting to mount their bar rail higher than the standard 6”. Be sure to carefully measure where each bracket will be placed before drilling into your bar. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.
These brackets mount directly to the face of the bar via three mounting screws and a 2 ¾" bolt that mounts from behind the bar to create a modern look where your metal bar rail tubing looks as if it is floating next to the bar. The threaded hanger bolt is what provides the added weight support to secure your foot rail in place.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Installation instructions:
Bar mount brackets include a 2 ¾" hanger bolt to properly support the weight. To ensure adequate support, a solid backing at least 3/4” deep is required.
- Measure & mark holes for mounting screws and for the threaded bolt.
- Drill hole in bar diewall for the threaded rod.
- Attach bracket from behind bar face using hanger bolt and secure with nut and washer.
- Attach brackets to the face of the bar with the 3 mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing.
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of stainless steel with gunmetal grey finish
- For use with 2" Outside Diameter bar rail tubing
- Attaches to the face of the bar from the rear
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting screws & hanger bolt for back of bar included
- Suitable for indoor or outdoor installation
-
- Bracket Width: 8.00”
- Bracket Height: 6.76”
- Opening Diameter: 2.01” (for 2” OD tubing)
- Wall to Center of Tubing (Horizontal Center Point): 6.94”
- Floor to Center of Tubing (Vertical Center Point): 5.70”
-
- (3) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- (1) 2 ¾" Hanger Bolt
- (1) Hex Nut 5/16” - 18
- (1) USS Flat Washer - 5/16”
- Download Spec Sheet
-
Attention CA Residents:
Prop 65 Warning >
You Might Also Like
The KegWorks Difference We're Your Favorite Drinking Buddy
Entertain & Inspire
We believe in creating and sharing good beverages. And having a damn good time doing it.
Educate & Inform
From troublshooting draft systems to crafting the perfect cocktail. We've got you covered.
Unique Product Selection
Your one-stop shop for the unique bar products you just have to have.
Exceed Expectations
Here to help. We aim to be the go-to source for all drink enthusiasts.
Customer Reviews
- Reviews
- Questions
nice foot rod.
You did not provide the 5/16" x18x3" threaded rods.
Grey Gun Metal Bar Rail Complements Grey Countertop and Stainless Steel Appliances

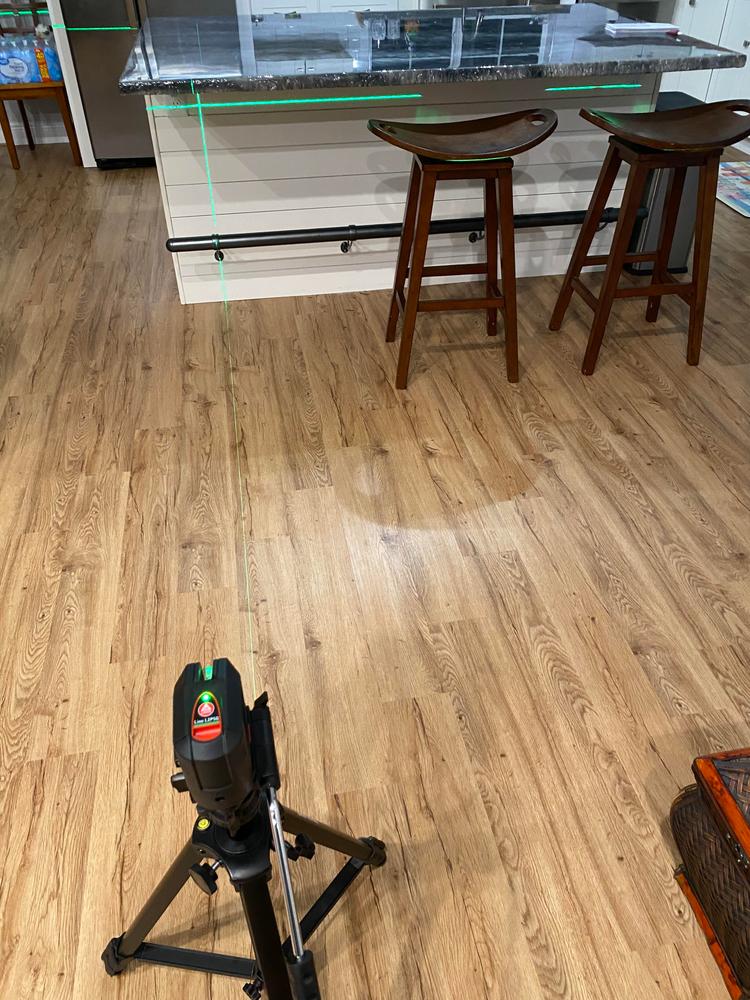

For my application the Bar Mount Foot Rail Bracket allowed me to place the bar foot rail at 10" above the floor to accommodate the bar stools and bar overhang for better convenience and comfort. The brackets also don't interfere with vacuuming and cleaning the floor. The gun metal finish is a nice blend for grey countertops and stainless steel appliances. The mounting hardware includes a 3" threaded rod and I needed 6" to reach through the counter back. Six-inch threaded rods are difficult, but not impossible to find, but threaded rod stock is readily available, but requires a little thread dressing after custom cut. I used a laser alignment tool (shown in the photo) to make sure the installation was square and level. I recommend this careful measurement to make sure the foot rail slides through the bar rail brackets easily.
Bar foot rail bracket
Great quality delivered on time
