Combination brackets are our most popular style of bar rail bracket because of their classic look and ease of installation. The weight on the bracket is distributed between the bar-mounted and floor supports to fully support your bar rail.
This combination bracket is made from 304 stainless steel with a polished finish, and will precisely match your Polished Stainless Steel two-inch outside diameter bar rail tubing.
This bracket sits approximately 6" off the floor (measured from the floor to the center of the area for the tubing) and 6"-7" away from the facing of the bar. With two contact points, this double-footed bar rail bracket combines a sturdy build and a classy design. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.
Combination brackets are installed by mounting them to the facing of a bar while the foot of the bracket rests on the floor. They are a perfect solution for anyone that wants a bracket to rest on the floor without having to drill into the surface.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Installation instructions:
- Measure & mark holes for mounting screws.
- Attach brackets to the face of the bar with mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of the bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of 304 stainless steel with polished finish
- For use with 2" Outside Diameter bar rail tubing
- Bracket arm mounts to the face of bar while foot rests on the floor
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting & self-drilling screws included
- Suitable for indoor use only (Clearcoat protection available by request)
-
- Bracket Width: 7.25”
- Bracket Height: 7.10”
- Opening Diameter: 2.01” (for 2” OD tubing)
- Wall to Center of Tubing (Horizontal Center Point): 6.13”
- Floor to Center of Tubing (Vertical Center Point): 5.99”
-
- (2) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- Download Spec Sheet
-
Attention CA Residents:
Prop 65 Warning >
The KegWorks Difference We're Your Favorite Drinking Buddy
Entertain & Inspire
We believe in creating and sharing good beverages. And having a damn good time doing it.
Educate & Inform
From troublshooting draft systems to crafting the perfect cocktail. We've got you covered.
Unique Product Selection
Your one-stop shop for the unique bar products you just have to have.
Exceed Expectations
Here to help. We aim to be the go-to source for all drink enthusiasts.
Customer Reviews
- Reviews
- Questions
Buyer beware for what they charge for China made stainless foot rail then mark it up isn't worth it. End cap tolerances are way off. Shipping charges even for non oversize shipments are over priced they have to mark there shipping up also.
Beyond Expectations
The rail brackets, 90 degree corner and ends were perfect!Thank You kegworks
A COLD CORONA GETS IT'S LIME!
Fast shipping got koozies here promptly to protect my Coronas from them still warm temperatures in northern Wisconsin.
Do it yourself,order from Kegworks!

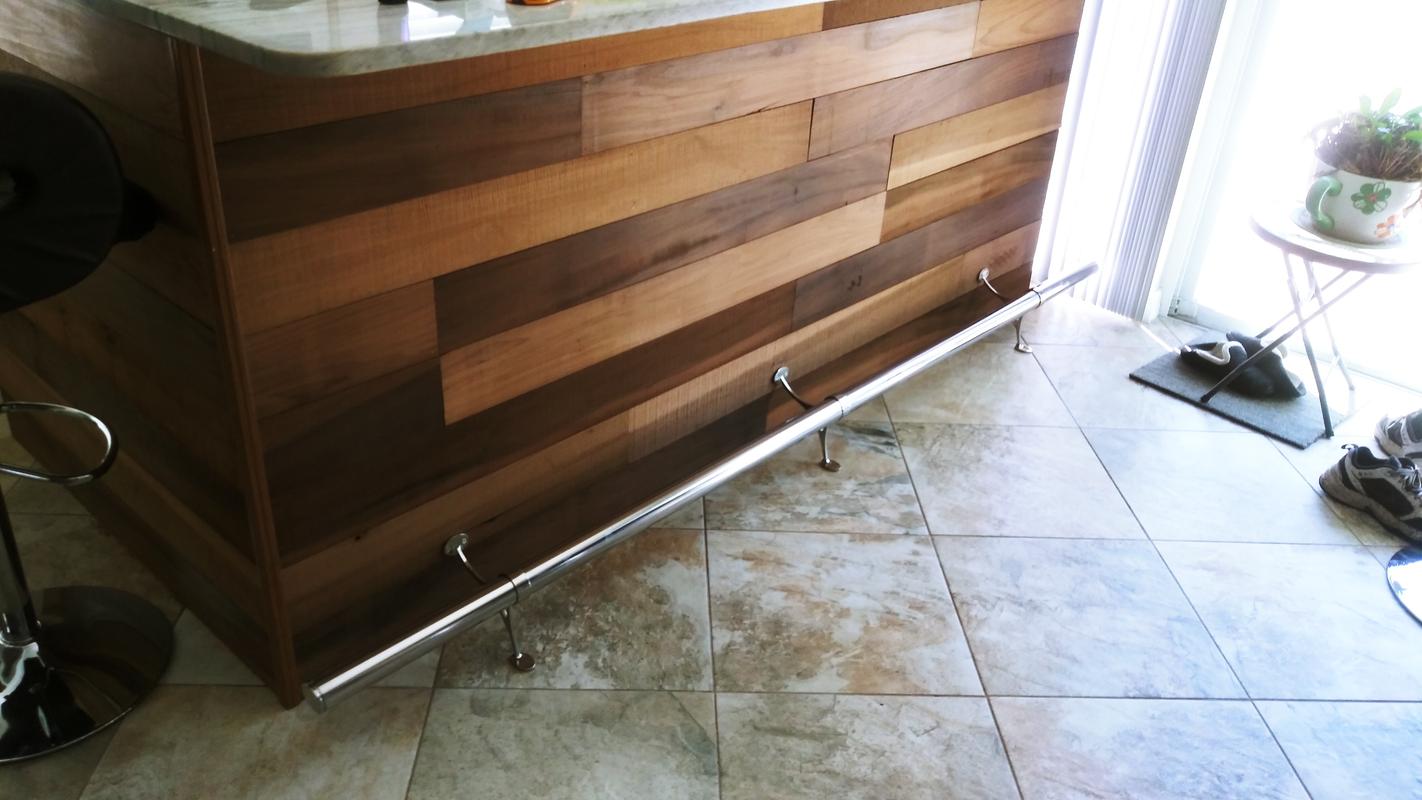

Everything turned out amazing! I put together a corner foot rail for a corner bar.Everyone who has seen it thus far says it looks just like a bar or tavern they've been to.I think it looks great,too!
