For those that have access to the back of their bar face, bar mount brackets are a great option for both a classy look and an added level of convenience.
Bar mount brackets are a great option for those that can’t (or don’t want) to drill holes into their floors, and keep it clear of mounts that can stub toes. They also make cleaning your floor easier because you can sweep or mop under your foot rail without impediments.
This oil rubbed bronze bar mount bracket is made from stainless steel with a powdercoated finish, and will precisely match your Oil Rubbed Bronze two-inch outside diameter bar rail tubing.
You can create a custom look with bar mounted brackets because they allow you to choose the height of your bar rail. This is the perfect solution for those wanting to mount their bar rail higher than the standard 6”. Be sure to carefully measure where each bracket will be placed before drilling into your bar. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.
These brackets mount directly to the face of the bar via three mounting screws and a 2 ¾" bolt that mounts from behind the bar to create a modern look where your metal bar rail tubing looks as if it is floating next to the bar. The threaded hanger bolt is what provides the added weight support to secure your foot rail in place.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Installation instructions:
Bar mount brackets include a 2 ¾" hanger bolt to properly support the weight. To ensure adequate support, a solid backing at least 3/4” deep is required.
- Measure & mark holes for mounting screws and for the threaded bolt.
- Drill hole in bar diewall for the threaded rod.
- Attach bracket from behind bar face using hanger bolt and secure with nut and washer.
- Attach brackets to the face of the bar with the 3 mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing.
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of stainless steel with oil rubbed bronze finish
- For use with 2" Outside Diameter bar rail tubing
- Attaches to the face of the bar from the rear
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting screws & hanger bolt for back of bar included
- Suitable for indoor use only (Clear coat protection available by request)
-
- Bracket Width: 8.00”
- Bracket Height: 6.76”
- Opening Diameter: 2.01” (for 2” OD tubing)
- Wall to Center of Tubing (Horizontal Center Point): 6.94”
- Floor to Center of Tubing (Vertical Center Point): 5.70”
-
- (3) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- (1) 2 ¾" Hanger Bolt
- (1) Hex Nut 5/16” - 18
- (1) USS Flat Washer - 5/16”
- Download Spec Sheet
-
Attention CA Residents:
Prop 65 Warning >
You Might Also Like
The KegWorks Difference We're Your Favorite Drinking Buddy
Entertain & Inspire
We believe in creating and sharing good beverages. And having a damn good time doing it.
Educate & Inform
From troublshooting draft systems to crafting the perfect cocktail. We've got you covered.
Unique Product Selection
Your one-stop shop for the unique bar products you just have to have.
Exceed Expectations
Here to help. We aim to be the go-to source for all drink enthusiasts.
Customer Reviews
- Reviews
- Questions
Excellent quality!
Love it!
Great customer service
Item was perfect and customer support was the best. Re-sent missing item, no questions asked. Would definitely do business again.
Just buy it!
These are great! They hold your beer very well. They keep the sweat off your hands so less chance of slippage and keep the warmth from your hand away. I have bought many of there for my friends.
Bar mount foot rail, end caps and 45
I used hanger bolts to mount the foot brackets onto a wall, then added longer screws into the stud for secure mounting. End cap served in place of a ****** against a cabinet on one end.
Very good product in eye doctor office
Keeps shoes and especially boots off special made wood front desk. Just have wiped it down for nearly two years now when dirty and barely can see any scratches with bright light at 2' away. Considering I see a lot of pediatric patients and they like to walk on the bar I'm seriously impressed.
Great Quality for a Fair Price

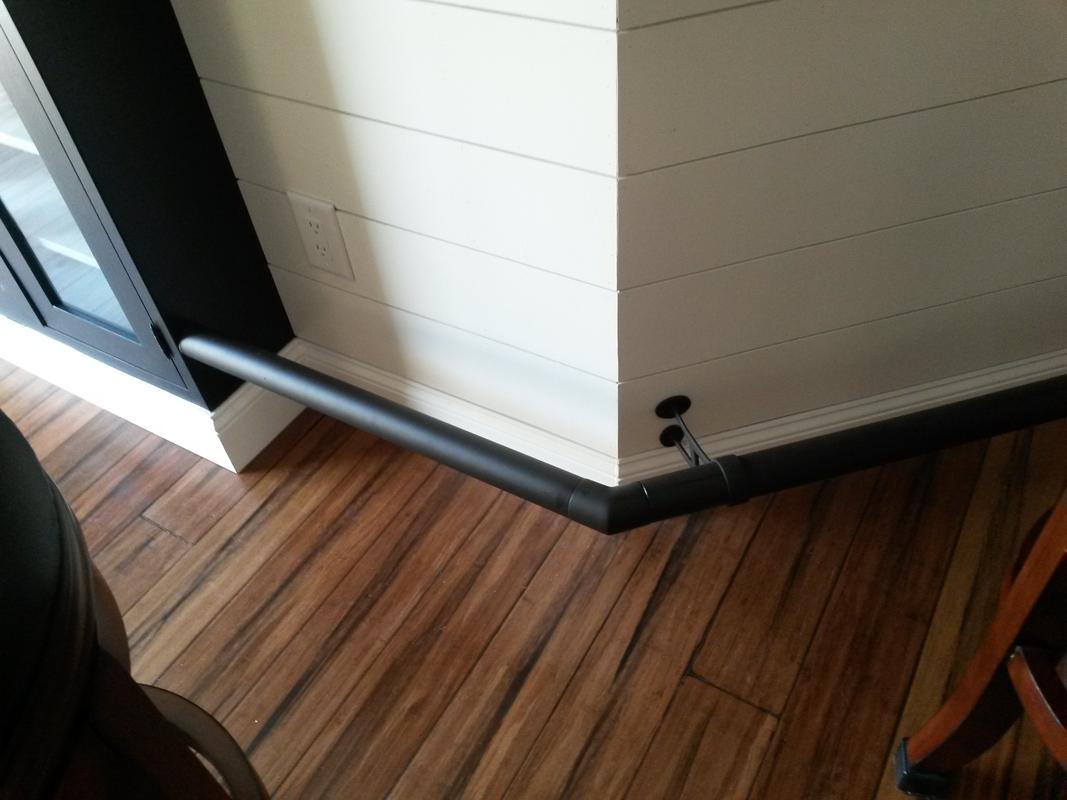

We just installed the oil rubbed bronze 2" bar mount foot rail on a 10 foot bar in our media room. It looks great and you can tell it's good quality and will hold up over time. It's always nerve racking buying on line (especially with a company you haven't used before) but I must say we are pleasantly surprised and hope to get many years of use out of this.
