Bar Foot Rail Brackets Guide

By Kegworks | 11 April, 2023

Bar rail brackets are an integral part of any bar rail project. Seriously, without them, your bar rail would just be a piece of tubing laying on the floor.

Choosing the right bracket for mounting your bar rail requires several considerations. While the brackets' visual appeal is important, you also have to consider the type of surface to which you are going to mount your bar rail tubing. KegWorks offers a variety of brackets to fit any method of bar foot rail installation.

Styles of Bar Rail Brackets

Brackets can be mounted to either the front of your bar or the floor below it as well as brackets that attach both surfaces to secure your bar foot rail in place. When deciding on which surface to use, make sure the material of your bar face or floor is able to be drilled into and that it can properly support the weight of your foot rail.

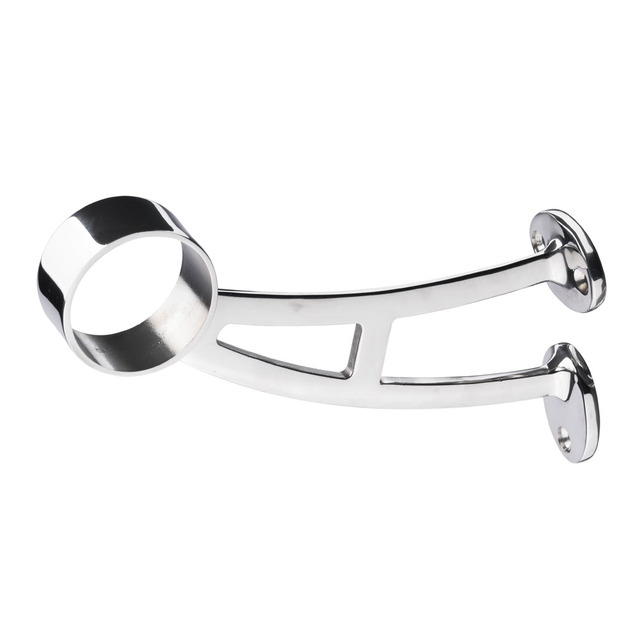

Bar Mount Brackets

Bar mount brackets are brackets that mount directly to the face of your bar. These brackets are easiest to clean under and give your bar a unique look. One advantage to using bar mount brackets is that it allows you to choose a custom height for your bar foot rail. This comes in handy if you need brackets taller than the standard 6". Most of the other brackets will be mounted at a fixed height from the floor. These brackets come with a threaded back access bolt is used for weight-bearing, so you MUST have access to the back of the bar to install these brackets:

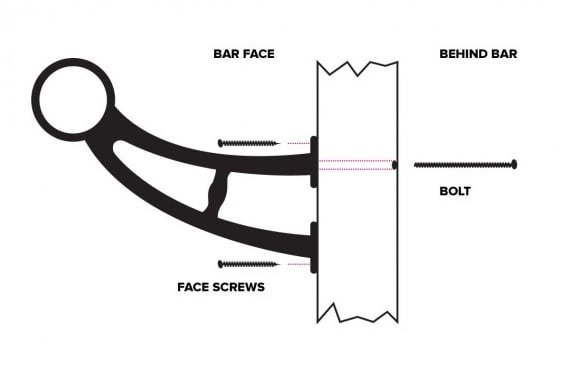

bar mount

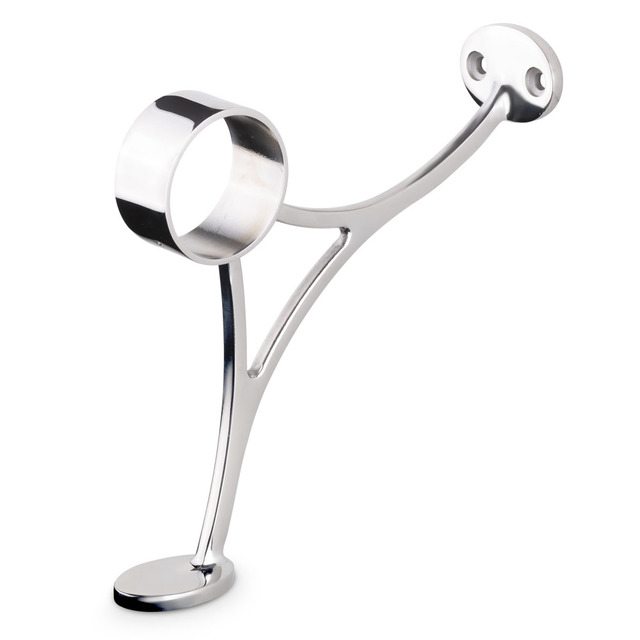

Combination Brackets

Combination bar rail brackets are our most popular style because they are easy to install and have a classic look. They mount to the face of the bar and rest on the floor for support. Unlike our basic bar mount brackets, you do not need access to the back of the bar to install the combination brackets. The height of a combination bracket bar foot rail is approximately 6" (measured from the floor to the center of the area for the tubing). The combination bracket will sit approximately 6"-7" away from the facing of your bar.

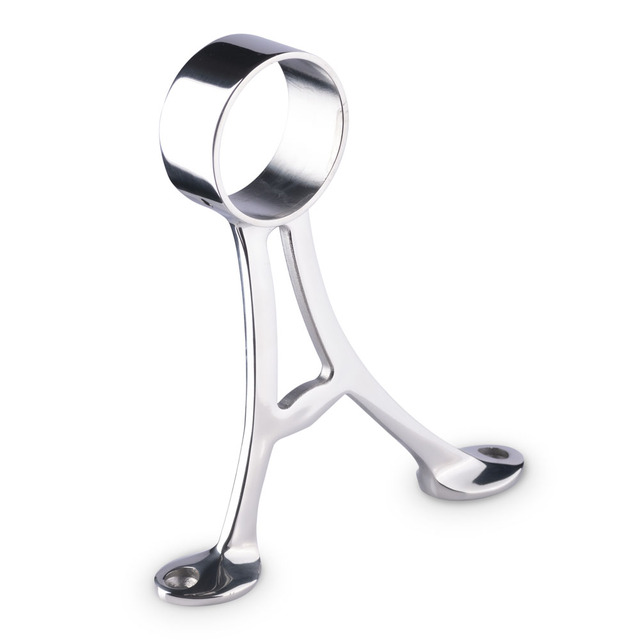

Floor Mount Brackets

If you guessed that floor mount brackets mount to the floor, you are correct! As with combination brackets, this eliminates the need for access to the back of your bar for installation. Floor mount brackets give you the added flexibility of installing them closer or farther away from the facing of your bar as desired. A floor mount bracket will avoid any risk of damage that could be caused by mounting a rail directly onto a bar. When mounted properly, the bar rail will sit 5.5"-6" off the floor.

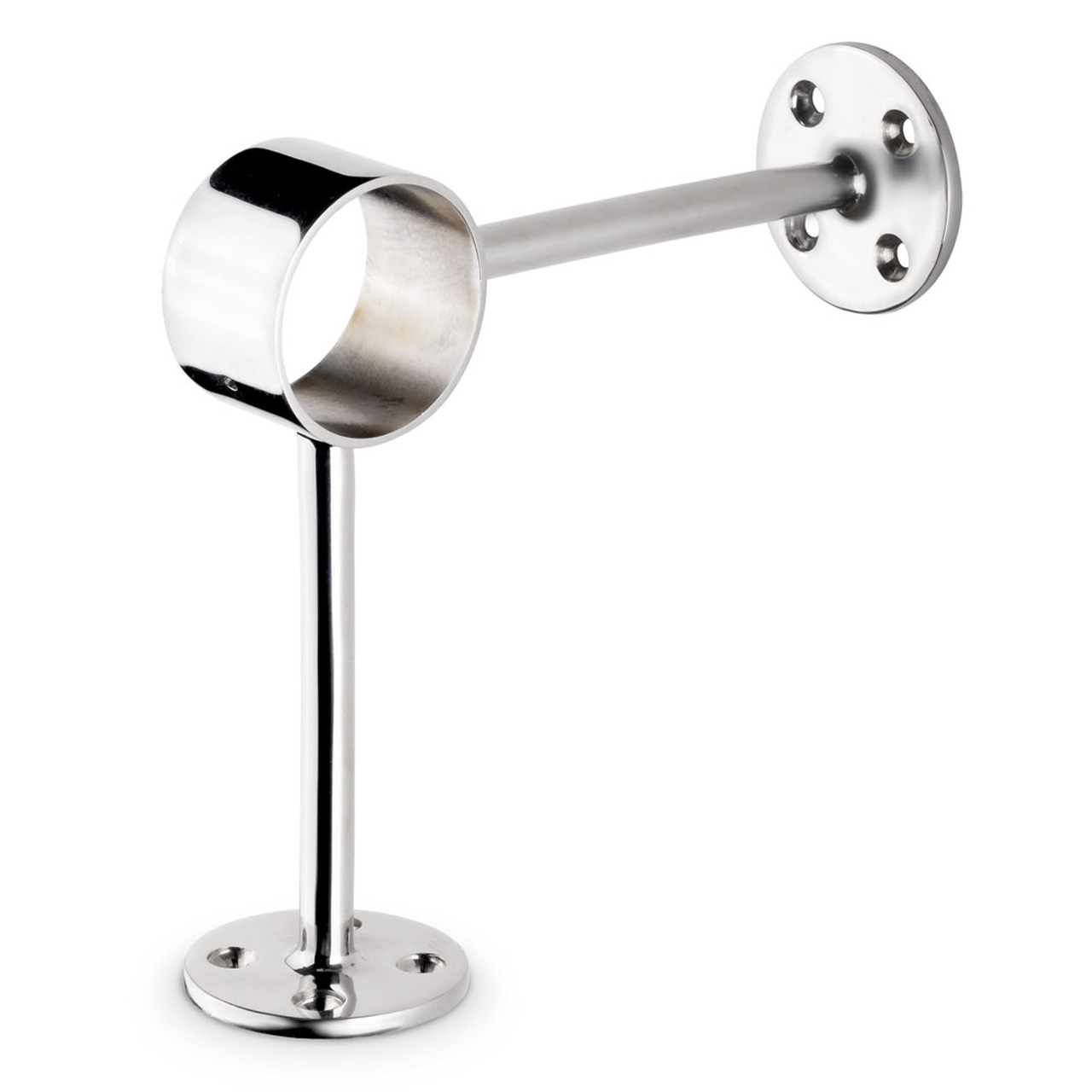

90-degree Brackets

KegWorks exclusive 90-degree brackets attach securely to both the face of your bar (or wall) and the floor for extra stability. With two contact points, this double-footed bar rail bracket combines a sturdy build and a practical design. The included 1 ½” mounting screws make installation extremely simple. These brackets sit exactly 5.89" from the floor to the center of the tubing, and 5.89" from the facing of the bar to the center of the tubing.

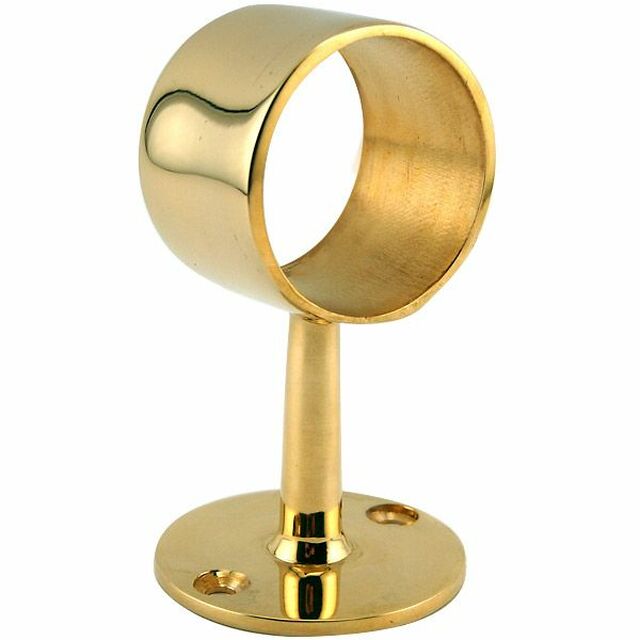

Center Post Brackets

Center post brackets are great for use as either a bar foot rail or bar handrail. Their low-profile design makes them extra versatile. These brackets are just 4.5" in total height. Center post brackets sit approximately 3.5" from the floor, bar facing, or wall that they are mounted upon to the center of the tubing. They can fit in tight spaces, be used as handrail, or be used as foot rail for bars with lower chairs or stools.

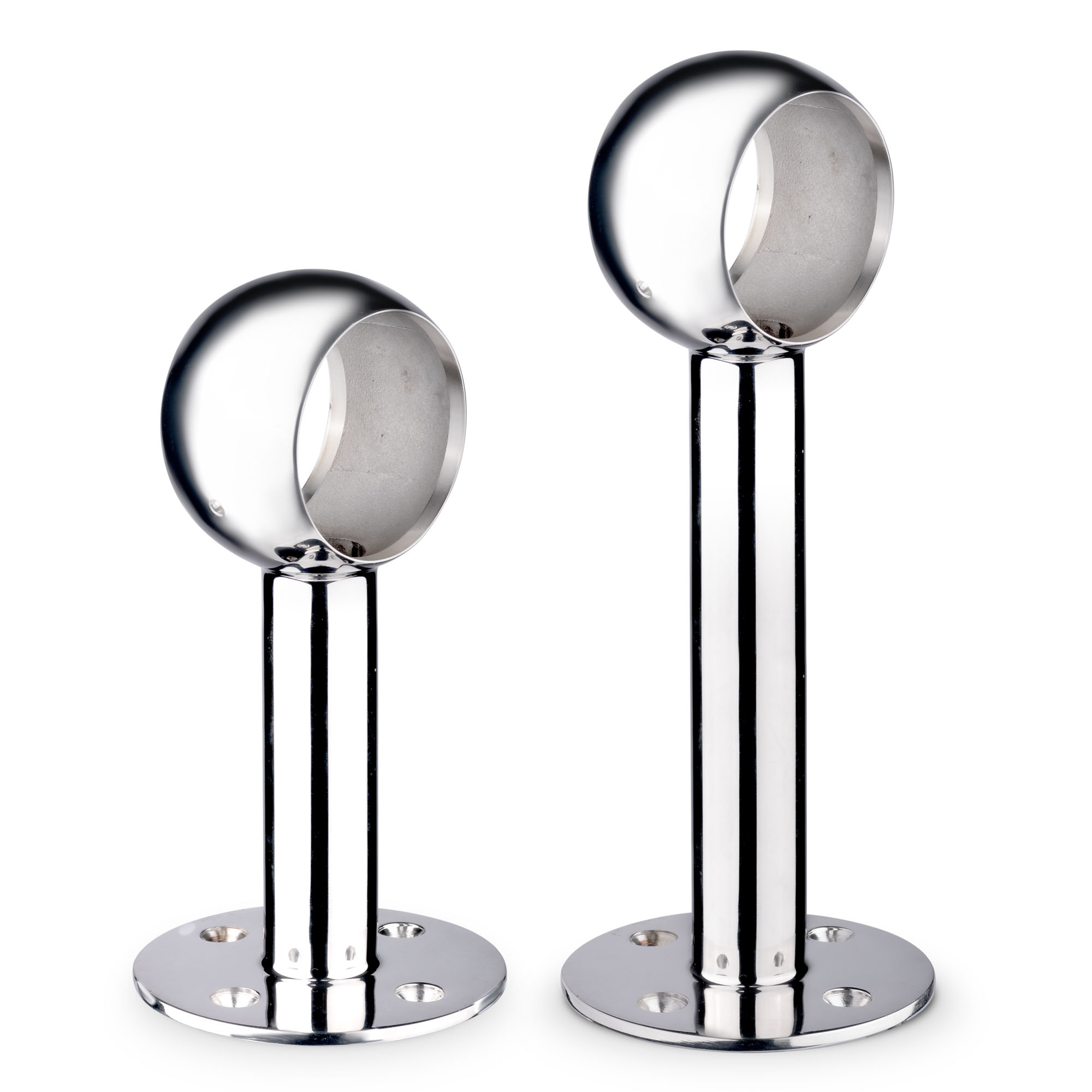

Rounded Center Post Brackets

rounded center post bar foot rail bracket

Rounded center post brackets and tall rounded center post brackets are exclusive to KegWorks, and add a slightly different touch than the center post brackets. Since there is only one support point with these brackets, it’s best to space these rounded center posts no more than 36 inches apart for stability. They sit approximately 4.75" from the floor to the center of the tubing.

For those that want their bar rail installed higher or if your stools are higher up, then rounded center posts provide you with extra options when it comes to installation. Tall rounded center posts sit approximately 6.5"-7" from the floor to the center of the tubing.

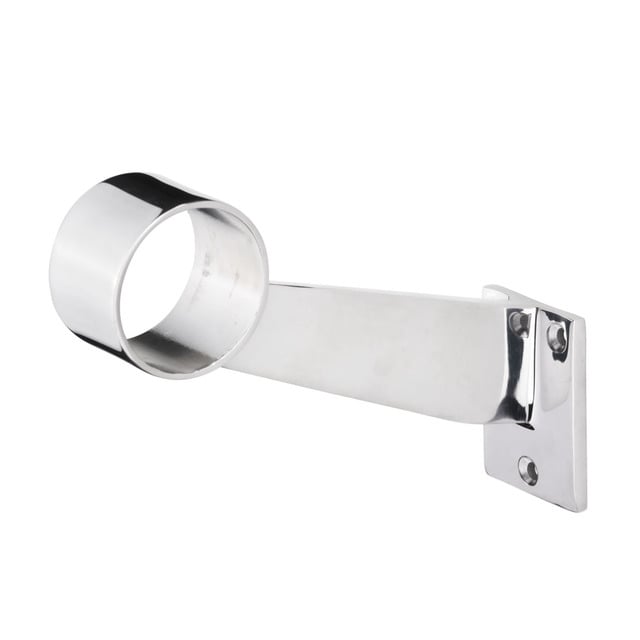

Contemporary Brackets

Contemporary brackets are our most versatile style of bar rail brackets. They combine a stylish, modern appearance with the ability to be mounted to the face of your bar or to the floor in front of your bar. For bar-mounted applications, they are installed in the same manner as traditional bar mount brackets with three mounting screws and a threaded bolt that mounts from behind the bar. If you go with the floor-mounted method for installation, then you only need to use the mounting screws to secure the brackets to your surface. These are a great option if you’re not completely sure on how to mount your bar rail or want to explore both options further.

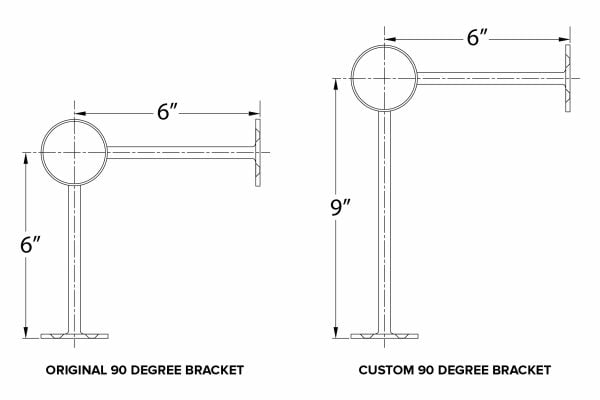

Custom Bar Rail Brackets

Custom brackets are an excellent solution if you need brackets that are taller than normal. KegWorks Bar Rail Experts can have custom bar rail brackets fabricated to match your project’s specifications based on a technical drawing that you supply. The custom brackets are constructed to spec using stainless steel to ensure a durable and affordable solution, and then powder coated to match the finish of your bar rails.

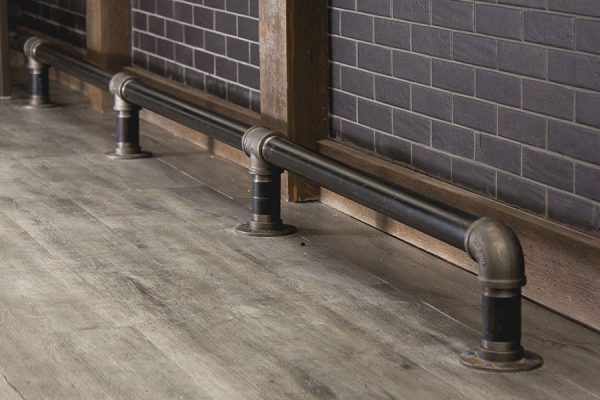

Industrial Black Pipe Brackets

Industrial black pipe bar foot rail is becoming a very popular style. Instead of brackets, industrial black pipe bar rail is secured by using a connector piece and 90 degree elbow that screws into a flange that is mounted to the floor. The strength of the industrial black pipe style allows the installer flexibility in desired height. The connector piece is 4" tall when fully screwed in, but they can sit up to 7" off the ground and still maintain their durability.

How many brackets will you need?

When planning your bar rail project, knowing exactly how many brackets you’ll need before you order your tubing and components is important. Laying out how your project will look will help you determine this. For best practice, use painter’s tape to map out exactly where you plan to put the bar rail and make a sketch. Your brackets should be placed 6 inches from each end of the rail (at most) and every 4 feet through the middle for proper support.

How high should your bar foot rail be?

The bar foot rail height from the floor will depend on the bracket you choose. For certain brackets, you can decide the height of a bar foot rail from the floor. With other brackets, the proper bar foot rail height is fixed. The bar rail will sit approximately 6" from the floor to the center of the bar rail. For example, if you have 8 feet of tubing, you’ll need one bracket on each end and one in the center, for a total of three brackets.

We have a complete guide to Planning & Installing Bar Foot Rail to help you get started with your bar rail project.

Without the sturdy support of bar foot rail brackets, you’d never be able to install a comfortable bar rail in your space. That’s why we carry a variety of bar foot rail brackets in easy-to-install styles and finishes. No matter which finish or bracket style you choose, you can be sure that a bar foot railing will offer comfort and style for years to come.

Start building your bar foot rail by browsing our collection of bar rail by finish. Have questions? Feel free to give us a call at 866-249-2337 or contact us today!

Guide to Bar Rail Brackets - KegWorks

Kegworks

Kegworks has been transforming hospitality spaces since 1998 with expertly crafted architectural metalwork and professional draft beer equipment, helping designers, architects, and bar professionals bring their visions to life.

Comments

Dale reeser
September 12, 2018, 2:37 am

Were can someone purchase padded arm restl
Thanks

Chris
September 13, 2018, 1:18 pm

Hey Dale,

We have all kinds of quality wood bar rail molding for arm rests, though not padded. Here's a good how-to on choosing and installing these arm rests as well.

Hope that's helpful, cheers!

Dino Vajraca
December 10, 2018, 8:13 pm

do you guys have any guidelines or insight in how your product can be used to address ADA requirements/protection. Is there a specific height it should be mounted at or within on a barface to conform to ADA requirements?

Thanks

Chris
February 22, 2019, 3:10 pm

Hi Dino,

We do offer ADA compliant handrails in a grippable, diamond scale design. They are not recommended for use as a commercial bar foot rail though. For ADA compliance, handrails should be between 34"-38" above walking surfaces, stair nosings, and ramp surfaces. They should also be at a consistent height.

John Serra
July 16, 2019, 8:58 am

Please give me a call. Id like to speak to a professional and send them a diagram of my bar so I could purchase the proper items for my bar foot rail.

Mike Williamson
August 4, 2019, 1:01 pm

Where can you buy the carpet shown in the opening pic?

Katie Johnson
August 5, 2019, 2:57 pm

Hi Mike, we are not sure, but we'd recommend reaching out to the location if you'd like to pursue this more. Cheers! https://www.parkclub.org/

David mccollum
March 7, 2020, 4:55 pm

Hey guys, Stuff looks amazing.

Unfortunately for me i came across your stuff to late. I need to install a foot bar rail. The catch is that its a concrete basement floor that has already been carpeted. I am definitely going with your guys product but what do you reccomend i use for the install?

Dave Buchanan
March 9, 2020, 1:39 pm

Hi David, you could use bar mount brackets or combination brackets that rest on the floor without drilling.

Bob Lawler
September 17, 2020, 7:52 pm

Will the black pipe be ok on a bar near a pool deck...if I give dimensions of sitting sides can I get
What I need or are they standard sizes...bare is in a Tech o blok U shape with chairs on 2 sides

Bob

David Buchanan
September 22, 2020, 5:23 pm

Hi, Bob! We don't recommend black pipe for outdoor installation because it is susceptible for corrosion unless you plan clear coating it before hand.

Chris Walton
November 23, 2020, 4:51 pm

Would a 2" rail bracket work with 2" diameter scaffold pole as a rail?

David Buchanan
December 28, 2020, 9:54 pm

Hi, Chris. It would depend on the material of the pole. If it's constructed from a material that can withstand the weight of someone leaning/standing on it then it should work.

Ted Wilkie
January 15, 2021, 7:56 pm

Hello,

Id like to get some custom foot rail brackets made.

Looking for a 90 degree bracket 12" high and the standard length away from the booth.

Looking for a polished (gold) brass finish.

David Buchanan
January 15, 2021, 8:02 pm

Hi, Ted. We have a form on our site for custom requests. https://content.kegworks.com/commercial-sales/commercial-bar-rail/bar-rail-custom-bends

Just fill it out and one of our reps will be in touch with you to discuss your options. Cheers!

Peter Perera
February 13, 2021, 5:45 pm

Hi , I am interested in 10 of Industrial Black Pipe foot rail. I do have a problem , at its highest point the rail can NOT be higher then 4 1/4 ,due to cabinet doors. Is this possible with this system ??

David Buchanan
February 15, 2021, 3:15 pm

Hi, Peter. I checked with our bar rail experts and they say it's impossible to properly install it that low. 5" is about as low as you could get.

Randall Barnes
February 23, 2021, 8:16 pm

Looking at foot rails. 27" to (90) 69" to (45) 54" to another (45) and 57"
2 end caps all 2" polished brass. The recommended amount of combinations mounting brackets.

David Buchanan
February 23, 2021, 8:33 pm

Hi, Randall. You can contact our Customer Care team at 877-636-3673 or email us at customercare@kegworks.com and they will be able to help you get everything you need for your bar rail project. Cheers!

Martha Alabanza
February 25, 2021, 6:49 pm

Is there a local rep or supplier

David Buchanan
February 25, 2021, 9:50 pm

Hi, Martha! We have a team of sales reps that work with different regions of the country. Check out or sales team page to find the rep that services your area https://content.kegworks.com/commercial-sales/meet-the-kegworks-sales-team

You can also purchase bar foot rail and components directly through our website. Cheers!

Robert Usrey
April 26, 2021, 5:03 pm

I would like to know how to order the custom 9inch tall brackets in the picture on this page.

David Buchanan
April 26, 2021, 5:11 pm

Hi, Robert! Just go to our custom request page to start the process for ordering custom brackets. https://content.kegworks.com/commercial-sales/commercial-bar-rail/bar-rail-custom-bends

Don Pettingill
July 28, 2021, 10:54 am

We prefer the look of the combination bracket but we need the top of the rail to be approx 9' off the floor. What is your recommendation?

David Buchanan
July 28, 2021, 12:33 pm

Hi, Don! It wouldn't be possible to fabricate a 9" tall combination bracket. We can custom fabricate a 90-degree bracket that size. If you're interested you can start by using our custom order request page. https://content.kegworks.com/commercial-sales/commercial-bar-rail/bar-rail-custom-bends

Cheers!

Michael Lane
November 19, 2021, 4:01 pm

My bar has a wood platform. I want to secure the rail to the platform, and still be sturdy, without screwing from the bottom.
Will any of your risers meet my needs?

David Buchanan
December 20, 2021, 2:48 pm

Hi, Michael. You can use bar mount or combination brackets to mount bar rail without having to screw brackets to your platform. Cheers!

Jack Burke
April 3, 2022, 8:18 pm

Need to find out what size screws that are provided for bar foot rail support have to go into cement floor

Stefan Kostecki
April 11, 2022, 7:55 pm

I have a customer looking for a foot rail for his bar. It is an 'L' shaped foot rail. He would like the legths to be 55-1/2" x 30" wall mounted (Not floor or combination). He would like this to have a sharp 90 degree angle where the 2 meet. Black in colour. I am not sure of the style of bracket, something clean and simple.

Based on the lengths and the style of mounting can you please price this out for the length and the correct number of brackets that will be needed?

Please don't hesitate to contact me with any questions you may have.

Respectfully,

Stefan

David Buchanan
April 11, 2022, 8:13 pm

Hi, Stefan! Your best bet to get quote for your project is to email us sales@kegworks.com, call us 1.866.249.2337 or fill out this form https://content.kegworks.com/customer-service/contact-us?hsLang=en

David Best
November 17, 2022, 2:07 pm

Do you offer the lower 4.5 inch high center brackets in antique copper for the 2 inch pipe?

David Buchanan
November 17, 2022, 2:25 pm

Hi, David! We can get those for you in the finish you need. Just fill out the form on our custom order page and someone will reach out to you. https://content.kegworks.com/commercial-sales/commercial-bar-rail/bar-rail-custom-bends Cheers!

Rod Overdorff
February 1, 2024, 11:29 pm

with the purchase of an 8' bar rail kit, how many brackets are included?

David Buchanan
February 2, 2024, 1:03 pm

Hi, Rod! Great question. 8' bar rail kits come with 3 brackets, which provides plenty of support for your bar rail.

Alan Weddell
August 15, 2024, 10:22 am

We need a bar mount bracket for 2" dia tube that does not stick out more than a few inches it is more of an accent and will not be used much and we have trip hazzard issue so want tube as close to bar as possible. It is an L shape bar so we need a way of seamlessly going around corner,

David Buchanan
August 16, 2024, 12:00 pm

Hi, Alan. For custom bracket solutions, your best bet is to fill out a custom quote request https://content.kegworks.com/commercial-sales/commercial-bar-rail/bar-rail-custom-bends and of our reps will follow up with you or give our Bar Rail Specialists a call at: 1.866.249.2337.

Brian Pearce
October 24, 2024, 1:12 pm

How far can the rail cantilever from the first or last bracket? I have combination brackets with a 2 rail thats 0.050 thick.

David Buchanan
October 24, 2024, 1:25 pm

Hi, Brian. We recommend installing brackets 2-6 inches from the end of the tubing.

FREDDIE KING
December 10, 2024, 12:58 am

Can I send a picture of a bar foot rail bracket I need and perhaps you could direct me to someone that sells it?
Fred

David Buchanan
December 10, 2024, 2:06 pm

Hi, Freddie! You can contact us right here - https://www.kegworks.com/customer-service/contact
