Contemporary bar rail brackets combine a stylish, modern appearance with the versatility of a bracket that can either be mounted to the face of your bar or to the floor in front of your bar.
Built from 304 stainless steel with a brushed finish, this contemporary bracket, along with Brushed Stainless Steel 2" metal tubing and other matching components, is a luxurious, convenient addition to any home or commercial bar.
For bar mounted applications, contemporary brackets use four mounting screws to create a modern look where your metal bar rail tubing looks as if it is floating next to the bar. It gives you the convenience of being able to choose the height of your bar rail while also allowing you to maintain a clean floor and eliminate the worry of guests stubbing their toes on floor brackets.
If you go with the floor-mounted method for installation, then you can use the mounting screws to secure the brackets to your surface. This way you can avoid disturbing the look of your bar face, and customize the distance between your bar rail and the front of your bar. Having your brackets mounted to the floor is also a good option if your bar face is unable to properly support your bar rail.
Be sure to carefully measure where each bracket will be placed before drilling into your bar face or floor. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Bar Mount Installation instructions:
- Measure & mark holes for mounting screws.
- Attach brackets to the face of the bar with the 4 mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
Floor Mount Installation instructions:
- Measure & mark holes for mounting screws.
- Attach brackets to the floor with the appropriate mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing.
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of 304 stainless steel with brushed finish
- For use with 2" Outside Diameter bar rail tubing
- Attaches to the face of the bar or to the floor
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting screws included
- Suitable for indoor use only (Clear coat protection available by request)
-
- Bracket Width: 7.00”
- Bracket Diameter: 2.01”
- Bracket Height: 5.50”
- Wall to Center of Tubing (Center Point): 6.00”
-
- (4) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- Download Spec Sheet
-
Attention CA Residents:
Prop 65 Warning >
You Might Also Like
The KegWorks Difference We're Your Favorite Drinking Buddy
Entertain & Inspire
We believe in creating and sharing good beverages. And having a damn good time doing it.
Educate & Inform
From troublshooting draft systems to crafting the perfect cocktail. We've got you covered.
Unique Product Selection
Your one-stop shop for the unique bar products you just have to have.
Exceed Expectations
Here to help. We aim to be the go-to source for all drink enthusiasts.
Customer Reviews
- Reviews
- Questions
Beautiful, but be prepared with additional screws
The bar rail is beautiful, but for the price of the brackets, it would have been nice to include the appropriate number of screws. There were several different options for mounting the brackets, with hardware included. However, there are three screw holes on each bracket, yet only two wood screws were included for each. We had to run around at the last minute trying to find matching screws to fill all the holes. We also had to glue the end caps on to the rail, as they don't fit tightly and fall right out. Overall, I love the look it gave our bar, just had some frustration with the installation.
Stainless footrail
Nice product...looks great !
Gives much needed foot and leg support with stainless tubing.
Great sturdy product. Love it. Goes perfect with my stainless appliances and brushed nickel hardware.
Bar rail
Look great! Actually used these floor mounted! Top rated!!!!
Well made commercial quality product.

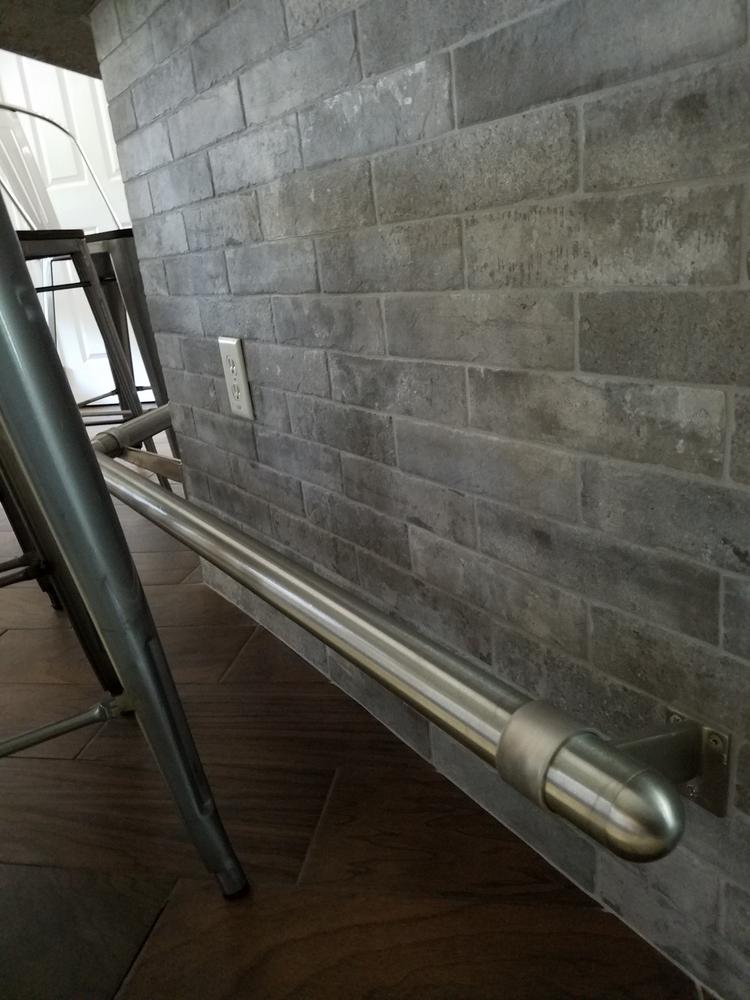

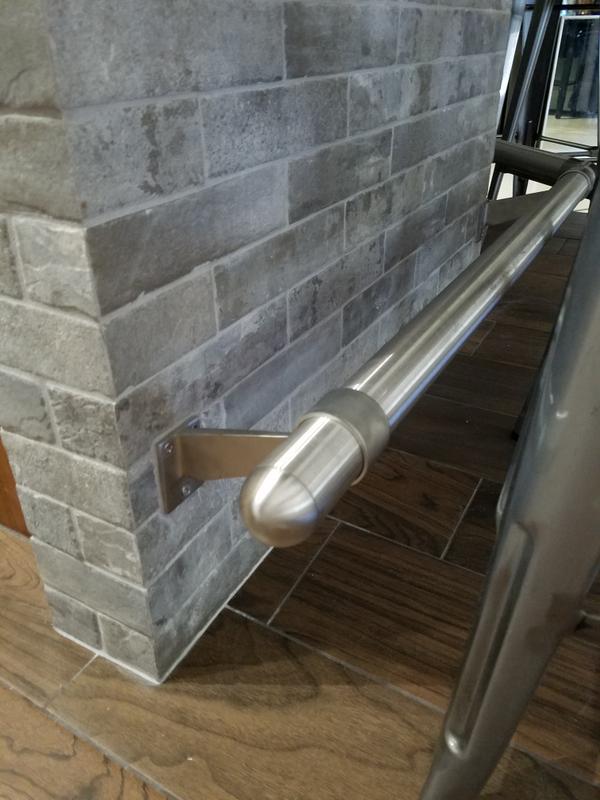

This bar rail was perfect! It turned out to be a little more complicated to install but that was only because of the brick tile. Once the holes were drilled the rest went together easy. Now no more scuffs from shoes hitting the wall! Yeah!!
