Your body is fully supported when you have two feet firmly planted on the ground, so why not support your bar foot rail the same way? Floor mount bar rail brackets install easily to the floor with two supports that are attached by mounting them to the surface below it. This is the perfect solution if you don’t want to drill holes into your bar face or if it can’t properly support the weight of your foot rail.
This floor mounted bracket is made from brass with a polished finish, and will precisely match your Polished Brass two-inch outside diameter bar rail tubing.
When mounted properly, the bar rail will sit 5.5"-6" off the floor. With two contact points, this double-footed bar rail bracket will hold up well to long-term and heavy use. For proper support, bar brackets should be placed at each end of the tubing, plus one for every 4-foot increment. Be sure to measure precisely where to place the screws ahead of time.
Floor mounted brackets give you plenty of options when installing your bar rail. You can choose how far or how close you want your foot rail to be in relation to your bar. They can also lean either towards or away from the bar with sufficient support in either direction.
For help deciding which bracket will work best for your bar project, check out our bar foot rail brackets guide for more information on each of the options.
Installation instructions:
- Measure & mark holes for mounting screws.
- Attach brackets to the floor with the appropriate mounting screws.
- Secure tubing to bracket by fastening set screws through hole in the bottom of bracket.
For more detailed instructions on how to install bar rail read our guide to planning & installing.
Care & Maintenance:
Care and maintenance of bar foot rail varies by finish. Given the nature of the product, typical wear and tear may be noticed with your bar rail over time, such as scuffs, scratches and dirt. Our guide to cleaning & maintenance on how to properly prep, clean & maintain all bar rail finishes.
-
- Made of brass with polished finish
- For use with 2" Outside Diameter bar rail tubing
- Two feet at bottom of bracket screw directly into floor
- Brackets should be used at both ends of rail tubing, plus one at every 4' increment
- Mounting & self-drilling screws included
- Suitable for indoor use only (Clear coat protection available by request)
-
- Bracket Width: 6.75”
- Bracket Height: 7.00”
- Opening Diameter: 2.01” (for 2” OD tubing)
- Floor to Center of Tubing (Center Point): 5.88”
-
- (2) #10 1-1/2" Mounting Screws
- (1) #8 3/4" Self-Drilling Set Screw
- Download Spec Sheet
-
Attention CA Residents:
Prop 65 Warning >
The KegWorks Difference We're Your Favorite Drinking Buddy
Entertain & Inspire
We believe in creating and sharing good beverages. And having a damn good time doing it.
Educate & Inform
From troublshooting draft systems to crafting the perfect cocktail. We've got you covered.
Unique Product Selection
Your one-stop shop for the unique bar products you just have to have.
Exceed Expectations
Here to help. We aim to be the go-to source for all drink enthusiasts.
Customer Reviews
- Reviews
- Questions
Brackets are great!

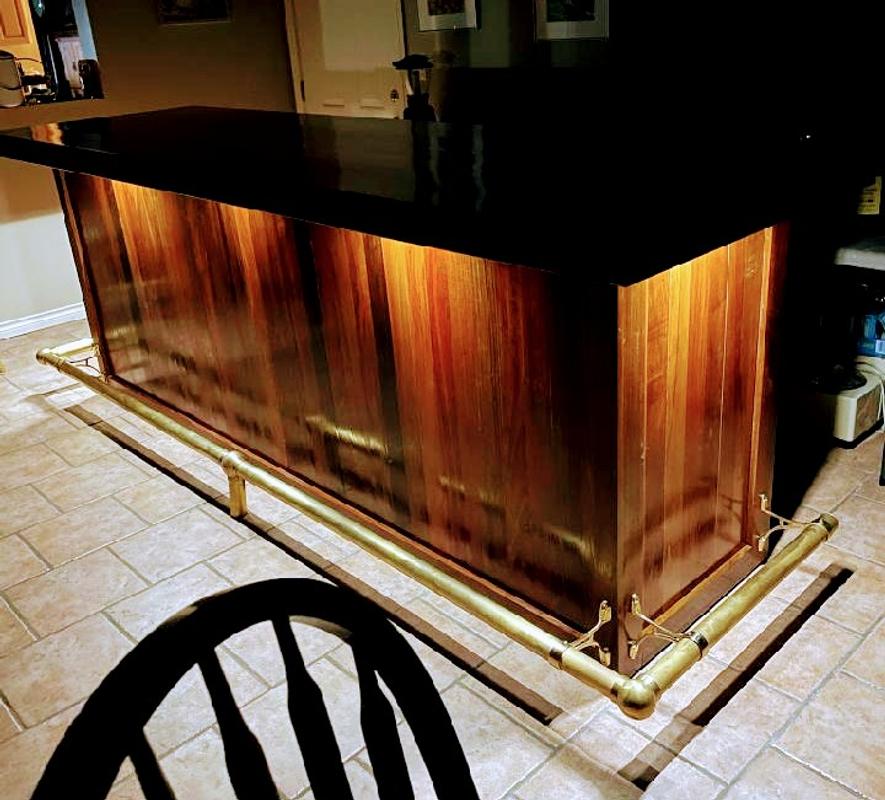

This bar has been a labor of love! The brackets worked great for the existing rails we reclaimed from a recent restaurant & bar closure.
